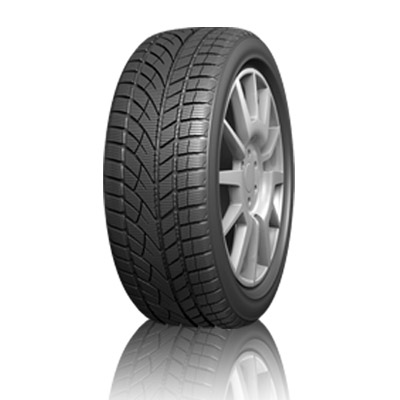

PT66
| Feature： |
| Silica compound for excellent driving performance on ice & snow surfaces. Asymmetric pattern and wide tread for outstanding safety. |
 |
 |
■Handling Asymmetric pattern featured by three main grooves provides super manoeuvrability.
■Braking Serrated design in the outside main groove assures high grip and braking force on ice & snow covered surfaces. ■■Snow Deep and densely distributed grooves and steel sheet helps soften the tread, contributes to shorten braking distance on ice covered surface. ■Safety Upgraded silica compound makes sure the tread stays soft even in low temperature, provides first-class safety.
|
| SIZE | PR | LI | SI | Overall Diameter | Section Width | Stardard Rim | Tread Depth | Max. Load | Max.Pressure | |||
| mm | inch | mm | inch | mm | inch(32') | kg | kpa | |||||
| 185/60R14 | 82 | T | 578 | 22.8 | 189 | 7.4 | 5½J | 9.2 | 12 | 475 | 300 | |
| 195/65R15 | 95 | XL | T | 635 | 25.0 | 201 | 7.9 | 6J | 9.2 | 12 | 690 | 340 |
| 205/65R15 | 94 | H | 647 | 25.5 | 209 | 8.2 | 6J | 9.2 | 12 | 670 | 300 | |
| 215/65R16 | 98 | H | 686 | 27.0 | 221 | 8.7 | 6½J | 9.5 | 12 | 750 | 300 | |
| 215/60R16 | 99 | XL | H | 664 | 26.1 | 221 | 8.7 | 6½J | 9.5 | 12 | 775 | 340 |
| 225/60R16 | 98 | H | 676 | 26.6 | 228 | 9.0 | 6½J | 9.5 | 12 | 750 | 300 | |
| 215/55R16 | 97 | XL | H | 642 | 25.3 | 226 | 8.9 | 7J | 9.5 | 12 | 730 | 340 |
| 225/55R16 | 99 | XL | H | 658 | 25.7 | 233 | 9.2 | 7J | 9.5 | 12 | 775 | 340 |
| 235/65R17 | 104 | S | 738 | 29.1 | 240 | 9.4 | 7J | 9.5 | 12 | 900 | 300 | |
| 265/65R17 | 112 | S | 776 | 30.6 | 272 | 10.7 | 8J | 9.5 | 12 | 1120 | 300 | |
| 225/50R17 | 98 | XL | H | 658 | 25.9 | 233 | 9.2 | 7J | 9.5 | 12 | 750 | 340 |
| 205/55R16 | 91 | H | 632 | 24.9 | 214 | 8.4 | 6½J | 9.5 | 12 | 615 | 300 | |
| 225/65R17 | 102 | S | 724 | 28.5 | 228 | 9.0 | 6½J | 9.5 | 12 | 850 | 300 | |
| 215/55R17 | 94 | H | 668 | 26.3 | 226 | 8.9 | 7J | 9.5 | 12 | 670 | 300 | |
| 225/55R17 | 97 | H | 680 | 26.8 | 233 | 9.2 | 7J | 9.5 | 12 | 730 | 300 | |
| 235/55R17 | 99 | H | 690 | 27.2 | 245 | 9.6 | 7½J | 9.5 | 12 | 775 | 300 | |
| 205/50R17 | 89 | H | 638 | 25.1 | 214 | 8.4 | 6½J | 9.5 | 12 | 580 | 300 | |
| 205/45R17 | 88 | XL | H | 616 | 24.3 | 206 | 8.1 | 7J | 9.5 | 12 | 560 | 340 |
| 215/45R17 | 87 | H | 626 | 24.6 | 213 | 8.4 | 7J | 9.5 | 12 | 545 | 300 | |
| 225/45R17 | 91 | H | 634 | 25.0 | 225 | 8.9 | 7½J | 9.5 | 12 | 615 | 300 | |
| 235/45R17 | 94 | H | 644 | 25.4 | 236 | 9.3 | 8J | 9.5 | 12 | 670 | 300 | |
| 225/40R18 | 92 | XL | H | 637 | 25.1 | 230 | 9.1 | 8J | 9.5 | 12 | 630 | 340 |
| 255/50R19 | 107 | XL | H | 739 | 29.1 | 265 | 10.4 | 8J | 9.5 | 12 | 975 | 340 |
