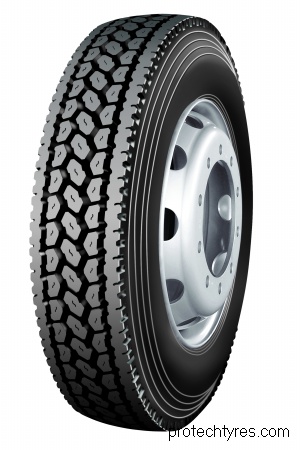

PT516
| Size | Pattern | Tread Depth(mm) | PR | Load Index | Speed | Rim | Load Capacity（single） | Load Capacity(Dual) | section width(mm) | Overakk Dia(mm) |
| 11R22.5 | 516 | 24.0 | 14 | 144/142 | L | 8.25 | 2800(kg)/730(kpa) | 2650(kg)/730(kpa) | 279 | 1050 |
| 11R22.5 | 516 | 24.0 | 16 | 146/143 | L | 8.25 | 3000(kg)/830(kpa) | 2725(kg)/830(kpa) | 279 | 1050 |
| 11R24.5 | 516 | 24.0 | 14 | 146/143 | L | 8.25 | 3000(kg)/730(kpa) | 2725(kg)/730(kpa) | 279 | 1104 |
| 11R24.5 | 516 | 24.0 | 16 | 149/146 | L | 8.25 | 3250(kg)/830(kpa) | 3000(kg)/830(kpa) | 279 | 1104 |
| 285/75R24.5 | 516 | 20.5 | 14 | 144/141 | L | 8.25 | 2800(kg)/760(kpa) | 2575(kg)/760(kpa) | 283 | 1050 |
| 285/75R24.5 | 516 | 20.5 | 16 | 147/144 | L | 8.25 | 3075(kg)/830(kpa) | 2800(kg)/830(kpa) | 283 | 1050 |
| 295/75R22.5 | 516 | 20.5 | 14 | 144/141 | L | 9.00 | 2800(kg)/760(kpa) | 2575(kg)/760(kpa) | 298 | 1014 |
| 295/75R22.5 | 516 | 20.5 | 16 | 146/143 | L | 9.00 | 3000(kg)/830(kpa) | 2725(kg)/830(kpa) | 298 | 1014 |
